Haldia

PORT INFORMATION- HALDIA
NAUTICAL POSITION LATITUDE: 22-02’ NORTH
LONGITUDE: 88-06’ EAST
GEOGRAPHICAL LOCATION “1) 104 KM DOWNSTREAM OF KOLKATA.
2) 130 KM UPSTREAM FROM SANDHEADS.
3) 45 KM UPSTREAM FROM PILOTAGE STATION.
4) AVERAGE PILOTAGE TIME : 3 HOURS.”
Authority
Port Official Name Designation Contact Details
SHRI P.L.HARANADH CHAIRMAN chairman@kolkataporttrust.gov.in
SHRI A.K.MEHRA DY. CHAIRMAN, SECRETARY / GM (OPS) dc.hdc@kolkataporttrust.gov.in
SHRI A. K. MAHAPATRA GENERAL MANAGER (SH) gm-traffic.hdc@kolkataporttrust.gov.in
CAPT. ABHIJIT GHOSH MARINE MANAGER (HOD) gm-marine.hdc@kolkataporttrust.gov.in
SALIENT FEATURES (ARRIVING / SAILING)
ANCHORAGE THE PORT OF HALDIA IS A RIVER IN PORT AND THE DESIGNATED BERTH IS LOCATED WITHIN THE IMPOUNDED DOCK SYSTEM.
APPROACH 70 NAUTICAL MILES FROM THE SEA KNOWN AS SANDHEADS
TIDES AS PER FORECAST
WEATHER MONSOON: MIDDLE OF JUNE TO MIDDLE OF OCTOBER
PILOTAGE 30 KM UPSTREAM FROM PILOTAGE STATION. AVERAGE PILOTAGE TIME IS 3 HOURS.
PORT DRAFT AS PER FORECAST.
BERTH INFORMATION
BERTHS LENGTH (m) DRAFT (m) PRIMARY CARGO HANDLED AT BERTH BERTH FACILITIES (m)
HOJ 1 250 MAX DRAFT 8.5 MTR LPG, FO, NAPTHA, LIQUID AMONIA, PARAXYLENE, POL PRODUCTS PIPE LINE
HOJ 2 250 MAX DRAFT 8.5 MTR LPG, CRUDE, NAPTHA, POL PRODUCTS PIPE LINE
HOJ 3 250 MAX DRAFT 8.5 MTR LPG, NAPTHA, CRUDE, EDIBLE OIL, POL PRODUCTS PIPE LINE
HDC 2 235 MAX DRAFT 8.5 MTR, AIR DRAFT 9.0 MTR COAL, COKE, LIME STONE, MANGANESE ORE, IRON ORE, SODA ASH 2 NOS MHC
HDC 3 235 MAX DRAFT 8.5 MTR EDIBLE OIL, SKO, FO, HSD, PARAXYLENE PIPE LINE
HDC 4 230 MAX DRAFT 8.5 MTR EDIBLE OIL PIPE LINE
HDC 4A 230 MAX DRAFT 8.5 MTR, AIR DRAFT 9.0 MTR COAL 2 SHORE CRANE
HDC 4B 230 MAX DRAFT 8.5 MTR, AIR DRAFT 9.0 MTR COAL, COKE, LIME STONE, MANGANESE ORE, IRON ORE, SODA ASH 2 NOS MHC
HDC 5 145 MAX DRAFT 8.5 MTR EDIBLE OIL, CBFS, PHOSPHORIC ACID PIPE LINE
HDC 6 190 MAX DRAFT 8.5 MTR EDIBLE OIL, CBFS, PHOSPHORIC ACID PIPE LINE
HDC 7 190 MAX DRAFT 8.5 MTR EDIBLE OIL, CBFS, PHOSPHORIC ACID PIPE LINE
HDC 8 230 MAX DRAFT 8.5 MTR, AIR DRAFT 9.0 MTR COAL, COKE, LIME STONE, MANGANESE ORE, IRON ORE, SODA ASH 2 NOS MHC
HDC 9 190 MAX DRAFT 8.5 MTR MANGANESE ORE, IRON ORE, SODA ASH, BREAK BULK SHIP’S CRANE
HDC 10 190 MAX DRAFT 8.5 MTR CONTAINER
HDC 11 190 MAX DRAFT 8.5 MTR CONTAINER
HDC 12 230 MAX DRAFT 8.5 MTR, AIR DRAFT 9.0 MTR COAL, COKE, LIME STONE, BREAK BULK
HDC 13 230 MAX DRAFT 8.5 MTR, AIR DRAFT 9.0 MTR COAL, COKE, LIME STONE, MANGANESE ORE, IRON ORE, SODA ASH 2 NOS MHC
TERMINAL 2 190 MAX DRAFT 8.5 MTR EDIBLE OIL PIPE LINE

Paradip

PORT INFORMATION- PARADIP
NAUTICAL POSITION “LATITUDE 20° – 15′ – 55.44″” N
LONGITUDE 86° 40′ – 27.34″” E”
GEOGRAPHICAL LOCATION PARADIP PORT IS STRATEGICALLY SITUATED AT MID-POINT BETWEEN 210 NAUTICAL MILES SOUTH OF KOLKATA AND 260 NAUTICAL MILES NORTH OF VISAKHAPATNAM.
Authority
Port Official Name Designation Contact Details
SHRI P.L. HARANADH, IRTS CHAIRMAN chm@paradipport.gov.in
SHRI ASISH KUMAR BOSE DY. CHAIRMAN, SECRETARY dychm@paradipport.gov.in
DR. P.N BAHEKAR SECRETARY / GM (OPS) secy@paradipport.gov.in
SHRI G. EDISON TRAFFIC MANAGER (HOD) tm@paradipport.gov.in
CAPT. ALEKHA CHARAN SAHOO MARINE MANAGER (HOD) dc@paradipport.gov.in
SALIENT FEATURES (ARRIVING / SAILING)
ANCHORAGE MEDIUM-SIZED ANCHORAGE. THE MAXIMUM LENGTH OF THE VESSELS RECORDED TO HAVING ENTERED THIS PORT IS 337 METERS. THE MAXIMUM DRAUGHT IS 16.5 METERS. THE MAXIMUM DEADWEIGHT IS 320411T.
APPROACH “10.00 KM LONG
300.00 MTRS WIDE
18.70 MTRS DEEP”
TIDES MINIMUM TIDE – 0.20 MTRS.
MAXIMUM TIDE – 3.50 MTRS.
WEATHER “MAXIMUM TEMPERATURE – 41.4° C
MINIMUM TEMPERATURE – 8.9° C
AVERAGE ANNUAL RAINFALL – 1480 MM
PILOTAGE THE PILOTAGE SERVICE IS AVAILABLE TO ALL VESSELS DURING 24 HOURS AND 365 DAYS. THE PILOT BOARDING GROUND IS ABOUT 3 MILES SE OF BREAKWATERS. ALL THE VESSELS HAVE TO INFORM THEIR ETA PRIOR TO ENTERING THE PORT LIMITS TO THE PORT SIGNAL STATION ON VHF CHANNEL: 16/06.
PORT CRAFT UPDATING SOON
BERTH INFORMATION
BERTH NUMBER BERTH NAME PERMISSIBLE LOA (m) PERMISSBILE BEAM PERMISSIBLE DRAFT (m) PRIMARY CARGO HANDLED AT BERTH BERTH FACILITIES (m) REMARKS
1 NORTH OIL JETTY (NOJ) 260 45 13.5 Liquid Pipe Lines Minimum Permissible LOA 148 m
2 NEW IRON ORE BERTH (NIOB) 300 45 15 Iron ore Mechanical Sailing of vessel upto 16m draft during High Tide
3 NEW COAL IMPORT BERTH (KICT) 260 45 14.5 Coal Mechanical Berthing of Vessel upto 16m draft during High Tide
4 IRON ORE BERTH (IOB) 230 33 13 Iron ore & Thermal Mechanical & Imported coal manual Iron ore,Thermal Coal & Imported coal
5 COAL BERTH 1 (CB-1) 300 45 14.5 Thermal Coal/Iron Ore Mechanical Iron ore loading on shipper request
6 COAL BERTH 2 (CB-2) 230 33 14.5 Thermal Coal Mechanical
7 EAST QUAY-3 (EQ-3) KICT 300 45 14.5 Coal Mechanical 3(Three vessel of total LOA maximum 600m)
8 EAST QUAY-2 (EQ-2) KICT 300 45 14.5 Coal Mechanical
9 EAST QUAY-1 (EQ-1) 230 33 12.5
10 SOUTH QUAY (SQ) 260 45 12.5 Iron ore, Coal, coke, various cargo Manual & HMC
11 CENTRAL QUAY 1 (CQ1) 300 45 14.5 Coal,Coke, Iron ore etc Manual & HMC 3(three vessel of total LOA maximum 680m)
12 CENTRAL QUAY 2 (CQ2) 230 33 14.5 Coal,Coke, Iron ore etc Manual & HMC
13 CENTRAL QUAY 3 (CQ3) 230 33 14.5 Iron Ore Pellet Mechanical
14 MULTIPURPOSE BERTH (MPB) 230 33 14.5 Coal,Coke, Iron ore etc Manual & HMC
15 FERTILISER BERTH -2 (FB-2) 230 332 14.5 Fertiliser Grade & Chemical tanker Mechanical Captive berth of Iffco
16 FERTILISER BERTH -1 (FB-1) 230 33 14.5 Fertiliser Grade & Chemical tanker Mechanical Captive berth of PPL
17 PICT 300 45 14.5 Clean cargo berth Manual & HMC Private berth of PICT
18 SOUTH OIL JETTY (SOJ) 260 14 14 Tanker piple lines Minimum Permissible LOA 148 m
19 SPM TERMINAL-1 (SPM-1) 370 60 21 Crude tanker piple lines Max DWT 320000mt, Min DWT 80000mt, Berthing in day time only
20 SPM TERMINAL-2 (SPM-2) 370 65 23 Crude tanker piple lines
21 SPM TERMINAL-3 (SPM-3) 370 65 23 Crude tanker piple lines
22 MOORING BERTH OFF FB-1 130 22 7.5 Edible oil piple lines
17 NORTH QUAY-02 (NQ-2 130 22 7.5 Dry cargo Manual only Either CQ-3 or MPB to be vacant for berth of vessel more than 110m LOA

Kakinada

PORT INFORMATION- KAKINADA
NAUTICAL POSITION 16°58′30″N 82°16′44″E / 16.975°N 82.279°E

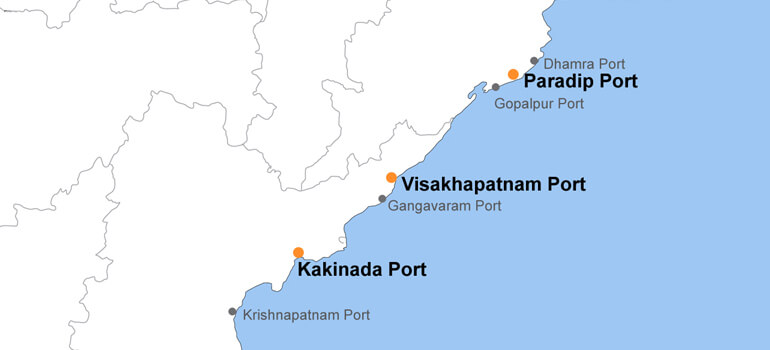

GEOGRAPHICAL LOCATION LOCATED AT EAST COAST OF INDIA. IT IS 170 KM (106 MI) SOUTH OF VISAKHAPATNAM PORT.
Authority
Port Official Name Designation Contact Details
MR. M. MURALIDHAR CHIEF OPERATING OFFICER 9866556678
CAPT. JACOB SATYARAJ GM (OPNS) 9866556688
CAPT. Y. V. RAVI SR. DGM MARINE (OPNS) 9866556694
M.V. SUBRAMANYAM AGM – OPNS 9866556682 Mail ID:ops@kakinadaseaports.in
SALIENT FEATURES (ARRIVING / SAILING)
ANCHORAGE AN ALL-WEATHER DEEP WATER PORT, AND THE CHANNEL HAS A DEPTH OF 12 METRES (39FT)
APPROACH UPDATING SOON
TIDES AS PER FORECAST
WEATHER MONSOON: MIDDLE OF JUNE TO MIDDLE OF OCTOBER
PILOTAGE N/A
PORT DRAFT AS PER FORECAST.
KAKINADA DEEP WATER PORT (JETTY)
NORTH BERTH MIDDLE BERTH SOUTH BERTH IV BERTH V BERTH VI BERTH VII BERTH NRW1 SOUTH NRW1 NORTH NRW2 NRW3
TYPE OF CARGO PETROLEUM PRODUCTS, LIQUID CHEMICALS, ACIDS, AMMONIA, EDIBLE OIL AND GENERAL CARGO ALUMINIUM POWDER, EDIBLE OILS, PHOS. ACID, GRANITE BLOCKS & OTHER GENERAL CARGO GRANITE BLOCKS, IRON ORE, STEEL COILS / SLABS, WOOD LOGS & CHIPS, FERTILIZERS & BITUMEN GRANITE BLOCKS, IRON ORE, STEEL COILS / SLABS, BITUMEN, COAL, FERTILIZERS & PROJECT MATERIALS GRANITE BLOCKS, IRON ORE, STEEL COILS / SLABS, BITUMEN, COAL, FERTILIZERS & PROJECT MATERIALS GRANITE BLOCKS, IRON ORE, STEEL COILS / SLABS, BITUMEN, COAL, FERTILIZERS & PROJECT MATERIALS CONTAINERS & GENERAL CARGO VESSELS EXCLUSIVELY FOR EDIBLE OIL VESSELS EDIBLE OIL, GRANITE BLOCKS, PROJECT MATERIAL & OTHER GENERAL CARGO VESSELS GRANITE BLOCKS, PROJECT MATERIAL & OTHER GENERAL CARGO VESSELS CURRENTLY USED BY SEMBMARINE KAKINADA LTD, A JV PARTNER OF KSPL UNDER SHIP REPAIRING UNIT
MAX. LOA IN METRES 190 225 (For ALUMINA it is 190 only) 190 295 295 295 190 140 170 150 150
MAX. BEAM IN METRES 32.4 32.4 32.4 45 45 45 32.4 20 26 26 26
CHANNEL DEPTH IN METRES 14 14 14 14 14 14 14 14 14 14 14
MAX. DRAFT IN METRES 11.5 11.5 11.5 14 14 14 12 10 11 11 11
DEPTH ALONG SIDE IN METRES 12.5 12.5 12.5 15 15 15 13 12 12 12 12
MIN. FREE BOARD IN METRES 2 2 2 2 2 2 2 2 2 2 2
DENSITY 1.010 to 1.020
TRIM TRIM SHOULD NOT BE GREATER THAN 2.5M BY STERN AND PROPELLER SHOULD BE FULLY SUBMERGED.
MOORING PATTERN TOTAL 10 ROPES:- FWD & AFT 3+2+2 ARRANGEMENT (HEAD / STERN LINE ROPES, BREAST/SPRING ROPES). ALL ROPES SHOULD BE POLYPROPYLENE AND WIRE ROPES ARE NOT ALLOWED.
CONTACTING CHANNEL CHANNEL 14/16 (KAKINADA PILOT STATION)
PBL RESTRICTIONS N/A N/A N/A N/A
DWT N/A N/A N/A N/A
DISPLACEMENT N/A N/A N/A N/A
NAVIGATION CAUTION N/A N/A N/A N/A
TIDAL RESTRICTIONS DRAFT CROSSING 10.5M NEEDS TIDE MOVEMNT FOR VESSELS BERTHING/UN-BERTHING. DRAFT CROSSING 11.5M NEEDS TIDE MOVEMNT FOR VESSELS BERTHING/UN-BERTHING.
COLD MOVEMENTS YES YES YES YES YES YES YES YES YES YES
SHORE CRANE N/A NOT SUITABLE FOR USAGE DUE TO ALUMINA CONVEYOR AVAILABLE (3 x 20 MT, 1 X 50 MT) AVAILABLE (2 x 70 MT, 1 X 10 MT) AVAILABLE (2 x 70 MT, 1 X 10 MT) AVAILABLE (2 x 70 MT, 1 X 10 MT) N/A N/A N/A DRY DOCK’S SHORE CRANE 50T CAPACITY MOVABLE THROUGH OUT NRW1, NRW2 & NRW3
ANY OTHER RESTRICTIONS NO NIGHT NAVIGATION FOR AMMONIA, NAPHTHA & CARGOES HAVING FLASH POINT < 22°C MIN. OUT REACH OF SHIP’S CRANE/DERRICK SHOULD BE 8m MIN. OUT REACH OF SHIP’S CRANE/DERRICK SHOULD BE 8m MIN. OUT REACH OF SHIP’S CRANE/DERRICK SHOULD BE 8m MIN. OUT REACH OF SHIP’S CRANE/DERRICK SHOULD BE 8m MIN. OUT REACH OF SHIP’S CRANE/DERRICK SHOULD BE 8m MIN. OUT REACH OF SHIP’S CRANE/DERRICK SHOULD BE 8m
DESLOPPING FACILITY NOT AVAILABLE
GARBAGE REMOVAL AVAILABLE
BUNKER SUPPLY
FRESH WATER SUPPLY
SIGN ON/OFF
PROVISION / STORES SUPPLY
CUSTOMS BOARDING GROUND AT BERTH AT BERTH AT BERTH AT BERTH AT BERTH AT BERTH AT BERTH AT BERTH AT BERTH AT BERTH
NEAREST AIRPORT RAJAHMUNDRY & VISAKHAPATNAM

Vizag

PORT INFORMATION- VISAKHAPATTANAM
NAUTICAL POSITION THE PORT IS LOCATED AT LATITUDE 17° 41’ N AND LONGITUDE 83° 18’ E.
GEOGRAPHICAL LOCATION IT LIES ON A SMALL EMBAYMENT OF THE BAY OF BENGAL ABOUT 380 MILES (610 KM) NORTHEAST OF CHENNAI.
Authority
Port Official Name Designation Contact Details
SHRI K. RAMA MOHAN RAO, IAS CHAIRMAN – 7095464464 chairman.vpt@gov.in
SHRI DURGESH KUMAR DUBEY, IRTS DY. CHAIRMAN – 9133555066 dychairman.vpt@gov.in
CAPT. S. TIWARI HARBOUR MASTER – 9705173334 dc.vepar@gov.in
SHRI B. RATNA SEKHAR RAO TRAFFIC MANAGER – 9848019360 tm.brsr.vpt.gov.in
CAPT. T. SRINIVAS DY. CONSERVATOR – 9603123449 dc.vpt@gov.in
SALIENT FEATURES (ARRIVING / SAILING)
ANCHORAGE MEDIUM-SIZED ANCHORAGE. THE MAXIMUM LENGTH OF THE VESSELS RECORDED TO HAVING ENTERED THIS PORT IS 334 METRES. THE MAXIMUM DRAUGHT IS 16.5 METRES. THE MAXIMUM DEADWEIGHT IS 318325T.
APPROACH UPDATING SOON
TIDES SEA PORT
WEATHER MONSOON: MIDDLE OF JUNE TO MIDDLE OF OCTOBER
PILOTAGE LOCATION OF THE PORT LATITUDE 17 DEGREES 41’N AND LONGITUDE 83 DEGREES 18’E. PILOT EMBARKATION – AT ROADS ABOUT 1.5 NAUTICAL MILE, SOUTHEAST OF SOUTH BREAK WATER RED LIGHT.
PORT DRAFT SEA PORT
NIGHT NAVIGATION LIGHT HOUSE DOLPHIN’S NOSE LIGHT HOUSE
LIGHT VESSELS
BERTH INFORMATION
SL.NO BERTH NAME LOCATION OF BERTH LOA BEAM DRAFT TYPE OF CARGO NORMALLY HANDLED NIGHT NAVIGATIONAL RESTRICTIONS
1 ORE BERTH – 1 “Entrance Channel Depth -20.00 Mts OUTER HARBOUR Turning Circle Depth -19.00 Mtrs” 270 48 16.50 Captive Berth for Iron Ore & Pellets No Navigational Restictions
2 ORE BERTH – 2 270 48 16.50
3 VGCB 300 50 18.10 COAL Import Mechanized handling faclility No Navigational Restictions
4 SPM Point 360 60 22 Single Point Mooring Day light berthing
5 OFF SHORE TANKER TERMINAL 240 48 17 Crude & Transhipment No Navigational Restictions
6 LPG BERTH 230 12 14 LPG & POL Operations & Transhipment No Navigational Restictions
7 VCTPL – 1 320 42 14.50 Captive Berth for Containers m/s VCTPL No Navigational Restictions
8 VCTPL – 2
9 AVCTPL (EQ-1 & 2) INNER HARBOUR BERTHS INFORMATION 225 38 14.50 “LOA 230.00 mtrs, Beam 32.50 mtrs Arrival Draft 12.50 mtrs for Handymax & 12.00 mtrs for Panamax Vessels are navigated round the clock”
10 EAST QUAY – 3 230 38 13.50 Food Grains, Fertilisers, Steel,Liquid Chemicals, Braek Bulk & Multipurpose Cargo Operational Berths [Facilitated With 10, 15 & 20 T Capacity Ele.Cranes, Pipe Line for Chemicals Handling & 4 No. Soya Handling Conveyors]
11 EAST QUAY – 4 230 38 13.50
12 EAST QUAY – 5 230 38
13 EAST QUAY – 6 182.90 38 11
14 EAST QUAY – 7 230 38 14.50
15 EAST QUAY – 8, EAST QUAY – 9 230 38 14.50 Multipurpose – BOT Berth m/s Vizag Sea Ports [4 No’s of HM Cranes]
16 EAST QUAY – 10 230 32.50
17 WEST QUAY – 1 RE 145 25 11 Coal & Coke, All Dusty Cargoes & Multipurpose Cargo Operations [2 No’s 104 T HM Cranes & Pipe Line for Chemicals Handling for S.Acid & C.Soda ]
18 WEST QUAY – 1 212 38 13.50
19 WEST QUAY – 2 226.70 38 13.50
20 WEST QUAY – 3 201.12 38 13.50
21 WEST QUAY – 4 243 38 11
21 WEST QUAY – 5 241 38 11 Captive Berth for NALCO with Conveyor
22 WEST QUAY – 6 [ALBA BERTH] 241.70 38 14.50 CP Coke, PET Coke, LAM Coke, Steel & Granite
23 WEST QUAY – 7 255 38 14.50
24 WEST QUAY – 8 235 38 14.50
25 OIL WHARF – 1 183 32.50 10.06 Captive Berth for POL Products & Other Chemical Cargoes No Navigational Restictions
26 OIL WHARF – 2 183 32.50 9.75
27 FERTILISER BERTH 195 32.50 10.06 Captive Berth for Fertiliser & Raw Fertiliser along Pipe line for Liquid Fertilisers. No Navigational Restictions
CHANNEL DEPTH IS: – 20 MTRS
WEST QUAY 1/2/3 DPETH: – 14.1 MTRS
F.BERTH DEPTH: -10.7 MTRSNOTE: VESSEL HAVING BEAM MORE THAN 33 .00 MTRS, NAVIGATION IN DAYLIGHT HIGHT WATER ONLY.

Gangavaram

PORT INFORMATION- GANGAVARAM
NAUTICAL POSITION LOCATED AT EAST COAST INDIA, BENGAL BAY IN INDIA AT COORDINATED N 17° 37′ 28.69″ – E 083° 14′ 25.61″
GEOGRAPHICAL LOCATION GANGAVARAM PORT IS LOCATED AT VISAKHAPATNAM. APPROXIMATE DRIVING DISTANCE BETWEEN VISAKHAPATNAM AND GANGAVARAM PORT IS 12 KMS OR 7.5 MILES OR 6.5 NAUTICAL MILES.
Authority
Port Official Name Designation Contact Details
CAPT.RAJESH PRAKASH DY. CONSERVATOR – HEAD MARINE SERVICES 7675992111
rp@gangavaram.com
PORT OPERATING CENTRE PORT OPERATING CENTRE 7337212404
poc@gangavaram.com
CUSTOMER SERVICE CENTRE CUSTOMER SERVICE CENTRE 9831058214
PORT AUTHORITY MR. SANJAY GUPTA DIRECTOR, COMMERCIAL 9949072624
sgupta@gangavaram.com
PORT AUTHORITY KSN RAVI DY. GENERAL MANAGER, COMMERCIAL 9866352753
ksnravi@gangavaram.com
MARINE DEPARTMENT CAPT.RR TRIPATHI DEPUTY CONSERVATOR 9701684545
dc@gangavaram.com ; marine@gangavaram.com
CUSTOMS MR. N. SATYANARAYANA SUPERINTENDENT 814284405
IMMIGRATION / PORT REGISTRATION OFFICER MR. SRINIVAS ASSISTANT SUB INSPECTOR 9346470008
PORT HEALTH MR. GAYEN PORT HEALTH 891 2562681
PORT STATE CONTROL (PSC) / MERCANTILE MARINE DEPARTMENT MR. JAYANTA MUKHOPADHYAYA ENGINEER & SHIP SURVEYOR-CUM-DY. DG TECH 9331011221
(O) 8912502148
SALIENT FEATURES (ARRIVING / SAILING)
ANCHORAGE LATITUDE 170.37° N and LONGITUDE 830.14° E
APPROACH UPDATING SOON
TIDES 1.8 MTRS (RANGE)
WEATHER MONSOON: MIDDLE OF JUNE TO MIDDLE OF OCTOBER
PILOTAGE About 2 nautical miles east-south-east of first pair of channel buoys (No. 1 & 2) in approximate Latitude 170 36.8° N, Longitude 0830 17.5° E.
PORT DRAFT AS PER FORECAST.
NIGHT NAVIGATION LIGHT HOUSE. UPDATING SOON.
LIGHT VESSELS
GANGAVARAM PORT RESTRICTIONS
BERTHS PERMISSABLE DIMENSIONS / MAX EQUIPMENT AVAILABLE TYPE OF CARGOES NORMALLY HANDLED
PERMISSIBLE LOA (M) BEAM (M) PERMISSIBLE DRAFT (M) AIR DRAFT DISPLACEMENT
1 230 30 13 65000 NO SHORE CRANES AVAILABLE ONLY SHIP’S CRANES WITH GRABS MULTIPLE PURPOSE BERTH (*All cargoes can be handled, here) – ALUMINA & C.P COKE cargoes can be handled at this berth, only
2 280 33 14.50 98000 2 x HMC(s) MULTI-PURPOSE BERTH (All cargoes can be handled, here)
3 230 33 15 98000 2 x HMC(s) MULTI-PURPOSE BERTH (All cargoes can be handled, here)
4 300 48 17 17.50 23600 1 x SHIP LOADER LOADING IRON ORE only
5 292 48 18 17.50 23600 2 x SHIP UN-LOADERS Discharge of Coking & Steam Coal cargoes
6 300 48 18 17.50 23600 2 x SHIP UN-LOADERS Discharge of Coking & Steam Coal cargoes
7 200 33 14.50 98000 NO SHORE CRANES AVAILABLE MULTIPLE PURPOSE BERTH (*All cargoes can be handled)
8 230 33 14.50 98000 1 x HMC MULTIPLE PURPOSE BERTH (*All cargoes can be handled, here)
9 290 33 14.50 98000 NO SHORE CRANES AVAILABLE MULTIPLE PURPOSE BERTH (*All cargoes can be handled at this berth)
BERTH INFORMATION
BERTH DRAFT(M) LOA(M) BEAM(M) DISPLACEMENT CARGO MANIFOLD CARGO RATE Per SHIFT Per HOOK IN MTS
BERTH NO. 1 13.5 M 190 M 33 M 50,000 MT GENERAL / BULK CARGOES SHIP CRANES WITH GRABS APX. 300 – 500 MT (NON SHORE CRANE)
BERTH NO. 2 14.5 M 230 M 38 M 98,000 MT COAL / FERTILISERS 2 SHORE HARBOUR MOBILE CRANES COAL – APX. 6,000 MT / FERT – APX. 3,000 MT
BERTH NO. 3 15.0 M 230 M 38 M 98,000 MT COAL / FERTILISERS 2 SHORE HARBOUR MOBILE CRANES COAL – APX. 6,000 MT / FERT – APX. 3,000 MT
BERTH NO. 4(IRON ORE MECHANICAL) 17.7 M 292 M 48 M 2,35,000 MT IRON ORE FINES 1 SHORE LOADER THROUGH CONVEYOR SYSTEM 600 MT Per HOUR PWWD
BERTH NO. 5 17.7 M 292 M 48 M 2,35,000 MT COAL 2 SHORE UNLOADERS THROUGH CONVEYOR SYSTEM 1,000 – 1,250 MT PER HOUR PWWD
BERTH NO. 6 17.7 M 292 M 48 M 2,35,000 MT COAL 2 SHORE UNLOADERS THROUGH CONVEYOR SYSTEM 1,000 – 1,250 MT PER HOUR PWWD
BERTH NO. 7 14.50 M 200 M 38 M NOT SPECIFIED ALUMINA / BF SLAG / FERTILISERS / BAUXITE ETC. SHIP CRANES WITH GRABS APX. 300 – 500 MT (NON SHORE CRANE)
BERTH NO. 8 14.50 M 230 M 38 M NOT SPECIFIED BAUXITE / FERTILISERS 1 SHORE HARBOUR MOBILE CRANE APX. 3,000 MT Per HOOK/Per SHIFT
BERTH NO. 9 14.50 M 290 M 35 M 98,000 MT STEEL / ALUMINA INGOTS / BF SLAG STEEL – 3000 MT PD / ALUMINA INGOTS – 1000-15000 MT PDA / BF

Gopalpur

PORT INFORMATION – GOPALPUR
NAUTICAL POSITION LOCATED AT THE LATITUDE 19º18’13.44″N AND LONGITUDE 84º57’52.72″E. THE PORT IS 90 NAUTICAL MILES SOUTH OF PARADIP PORT AND 110 NAUTICAL MILES NORTH OF VISHAKHAPATNAM PORT.

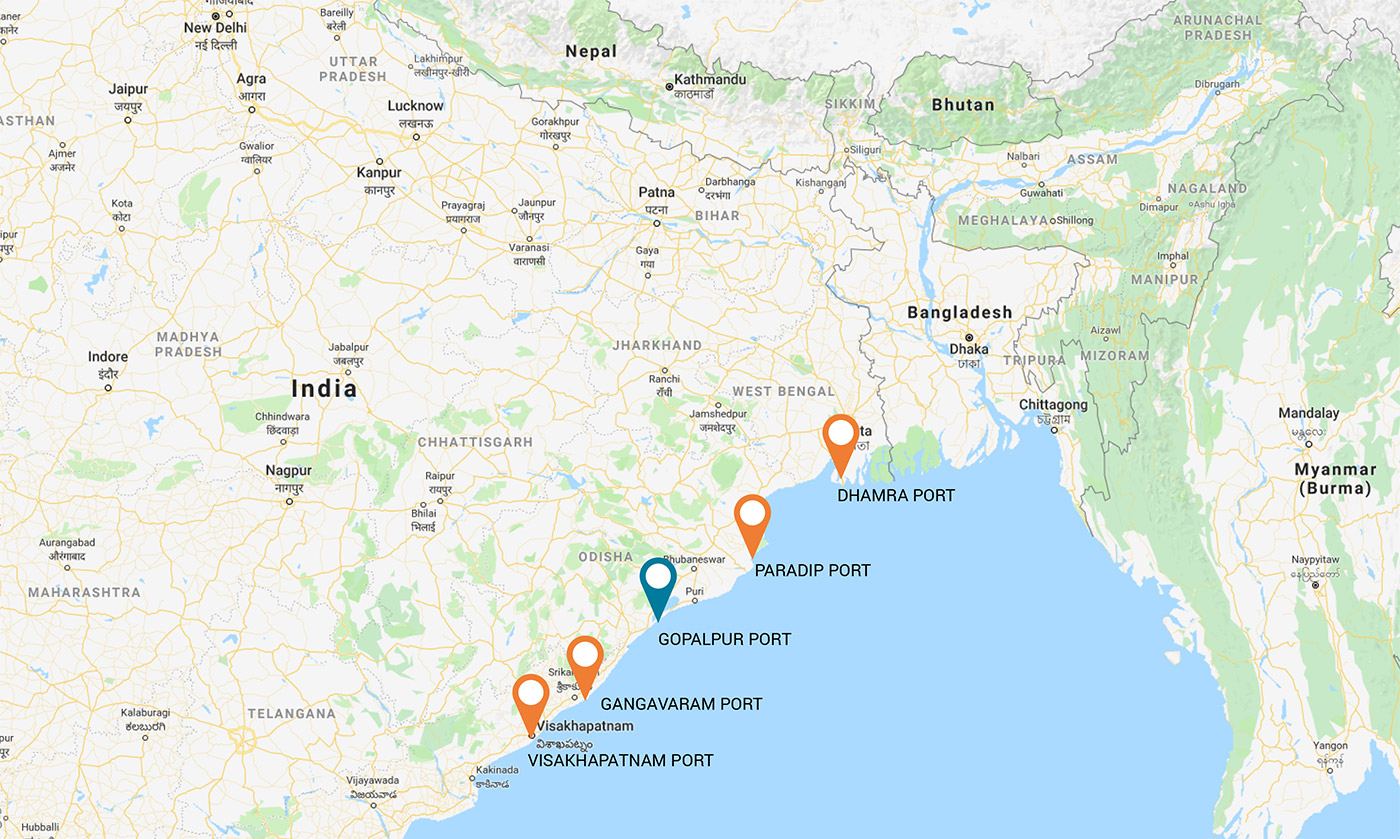

GEOGRAPHICAL LOCATION LOCATED ALONG THE EAST OF INDIA IN THE STATE OF ODISHA, IT LIES BETWEEN PARADIP PORT IN THE NORTH AND VISAKHAPATNAM PORT IN THE SOUTH AT ALMOST EQUI DISTANCE FROM EACH.
Authority
Port Official Name Designation Contact Details
sales@gopalpurports.in
info@gopalpurports.in
06811-257699/257799
SALIENT FEATURES (ARRIVING / SAILING)
ANCHORAGE GOPALPUR PORT IS A DEEP SEAPORT. THE PORT HARBOUR IS NATURAL AND ITS DEPTH IS 18.5 METERS. ANCHORAGE AREA IS SITUATED SOUTH OF THE FAIRWAY BUOY WITH GOOD HOLDING GROUND OF MUD AND SAND.
APPROACH UPDATING SOON
TIDES AS PER FORECAST.
WEATHER MONSOON: MIDDLE OF JUNE TO MIDDLE OF OCTOBER
PILOTAGE PILOTAGE IS COMPULSORY FOR ALL THE VESSELS OF MORE THAN 200 GRT CALLING AT GOPALPUR PORT. PILOT BOARDING STATION IS LOCATED AT 19°17.7’N 085°00.9’E (AT DISTANCE OF ABOUT ONE MILE EAST OF FAIRWAY BUOY)
PORT DRAFT AS PER FORECAST.
BERTH INFORMATION
BERTHS LENGTH (m) BEAM (m) DRAFT (m) DWT QTY HMC MHS
B-1 240 36 13.5 CAPE SIZE 1 “No Of Cranes: 3 No’s
Capacity: 1500 Design, 1300 Rated
No Of Cyles Per Hr: 40
Max Boom Reach: 51 M
In Boom Reach: 11 M
Max Capacity With Grab: 50 Ton-2 Nos Crane, 40 Ton- 1no Crane
Max Capacity With Hook: 100 Ton-2 Nos Crane, 80 Ton- 1no Crane
Grab Existing: 40 Cbm, 20 Cbm”		 “No Of Conveyors: 6 Nos
Conveyor Capacity: 3300 Design, 3000 Rated
Conveyor Designed For: Coal
Conveyor Overall Length: 1041 M
Conveyor Endless Length: 2069 M
Returnable Belt Feeder’s: 2 No’s
Travelling Tripper: 2 No’s
Mobile Hoppers: 2 No’s
Mobile Hopper Capacity: 100 Ton
Stockyard Capacity: 0.24mmt”
B-2 240 36 13.5 CAPE SIZE 2
B-3 240 36 13.5 CAPE SIZE 3

Dhamra

PORT INFORMATION – DHAMRA
NAUTICAL POSITION “LATITUDE : 20.8234
LONGITUDE : 86.9604”
GEOGRAPHICAL LOCATION SITUATED BETWEEN HALDIA AND PARADEEP, DHAMRA PORT IS IN CLOSE PROXIMITY TO THE MINERAL BELT OF ODISHA, JHARKHAND AND WEST BENGAL OFFERS DEEPENED HINTERLAND CONNECTIVITY AND OPERATIONAL EFFICIENCY.
Authority
Port Official Name Designation Contact Details
CAPT. PRADYUT SEKHAR PATRA MARINE HEAD / PFSO +91-7894408032
MR. SANDEEP JAISWAL OPERATION HEAD +91-7798988956
MR. SATYABRATA MOHAPATRA
SALIENT FEATURES (ARRIVING / SAILING)
ANCHORAGE “LATITUDE : 20.92483°
LONGITUDE : 87.136005°”
APPROACH WITH DEEP DRAFT BERTHS AND MULTIPURPOSE TERMINALS, THE PORT EFFICIENTLY HANDLES THE LARGEST BULK CARRIERS IN THE WORLD. THE PORT HAS COVERED AND OPEN STORAGE AREAS WITH ENORMOUS CAPACITY.
TIDES AS PER FORECAST.
WEATHER UPDATING SOON
PILOTAGE PILOTAGE IS COMPULSORY FOR ALL THE VESSELS OF MORE THAN 200 GRT CALLING DHAMRA PORT. ANY VESSELS REQUIRED TO CARRY A PILOT UNDER THE INDIAN PORTS ACT, 1908 SHALL NOT NAVIGATE WITHIN THE HARBOUR UNLESS A DHAMRA PORT PILOT IS ON BOARD. PILOT BOARDING STATION IS LOCATED AT 20°55′.96N 87°08′.04E.
PORT DRAFT AS PER FORECAST.
BERTH INFORMATION
BERTHS LENGTH (m) BEAM (m) DRAFT (m) DWT QTY HMC MHS
B-1 350 24 17.2 25000 1 “Grab Ship Unloaders : 5 nos. with 2800 TPH each
Mobile Harbour Cranes: 2 nos (LHM 400 with 37 CBM Grab)
Truck Loading Hoppers: 2 nos. with 100 MT capacities each
Stacker Reclaimer: 2 nos. with 5500/3500 TPH each
Stacker Reclaimer: 2 nos. with 7500/3500 TPH each”		 “Ship Loader: 1 nos. with 5000 TPH
Stacker Reclaimer: 02 nos. with 5500/3500 TPH
Reclaimer: 1 no with 5000 TPH
Wagon Tippler: 2 nos. with 25 Tipps Per Hour Per Tippler
Track Hopper: 1 nos. capable of unloading 1 full rake in 90 Minutes”
B-2 350 24 17.2 25000 2
B-3 350 24 17.2 25000 3
BB-3A 350 24bsp; 14.2 25000 BULK/GENERAL
BARGE BERTH 130 20 12.5 8000 GENERAL
